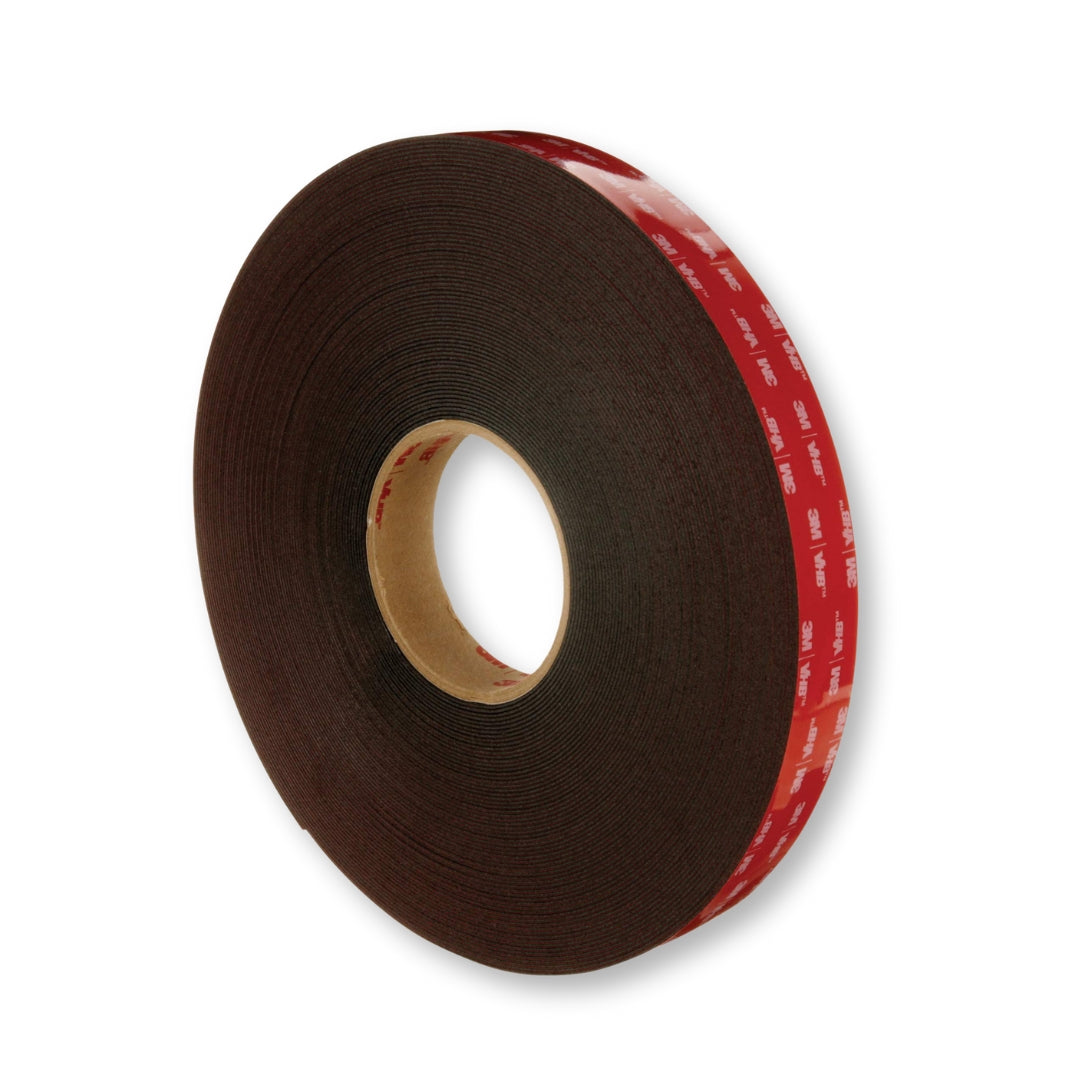

3M™ VHB™ Tape 5962

3M™ VHB™ Tape 5962 is a 1.6 mm (0.062 in) thick black double-coated acrylic foam tape
with a red PE film liner. It features a modified acrylic adhesive that bonds to high, medium,
and low surface energy substrates including metals, glass, and many plastics and paints,
even powder-coated finishes. This tape provides a strong, permanent bond, excellent
conformability, and reliable performance in a wide range of applications, replacing
mechanical fasteners and liquid adhesives.

Key Features
• High-strength, permanent bonding with long-term durability
• Virtually invisible fastening for smooth surfaces
• Replaces rivets, screws, welds, and liquid adhesives
• Black acrylic foam core provides excellent conformability
• Seals against water, moisture, and contaminants
• Excellent gap-filling properties and immediate handling strength
• Bonds to metals, glass, plastics, and powder-coated paints
• Allows use of thinner, lighter, and dissimilar materials

Applications
• Permanent bonding of metals, glass, plastics, and painted or powder-coated surfaces
• Replacing rivets, welds, and screws in assemblies
• Mounting panels, trims, nameplates, and brackets
• Providing a water- and dust-tight seal
• Applications requiring vibration damping or gap filling

Handling & Storage
• Clean surfaces with a 50:50 isopropyl alcohol (IPA) and water mixture before
application.
• Apply firm pressure (approx. 15 psi / 100 kPa) for optimal adhesion.
• Ideal application temperature: 21°C to 38°C (70°F to 100°F).
• Minimum application temperature: 10°C (50°F).
• Shelf life: 24 months when stored between 4°C and 38°C (40°F to 100°F).

Technical Specifications
Adhesive Type:
Modified Acrylic

Foam Type:
Very Conformable

Acrylic Foam Color:
Black

Liner:
Red PE Film (Printed)

Total Thickness:
1.6 mm (62 mil) ±10%

Density:
590 kg/m³ (37 lb/ft³) 90°

Peel Adhesion (ASTM D3330):
22 lb/in (39 N/cm)

Normal Tensile Strength (ASTM D897):
70 lb/in² (480 kPa)

Overlap Shear Strength (ASTM D1002):
80 lb/in² (550 kPa)

Short Term Temp Resistance:
149°C (300°F)

Long Term Temp Resistance:
93°C (200°F)

Minimum Application Temperature:
10°C (50°F)

Static Shear (ASTM D3654):
Up to 750 g (at 23°C)

Standard Roll Length:
32.9 m (36 yd)

Available Widths:
12mm x 33m
24mm x 33m
Custome widths are available

Shelf Life:
24 months (4–38°C, 0–95% RH)
